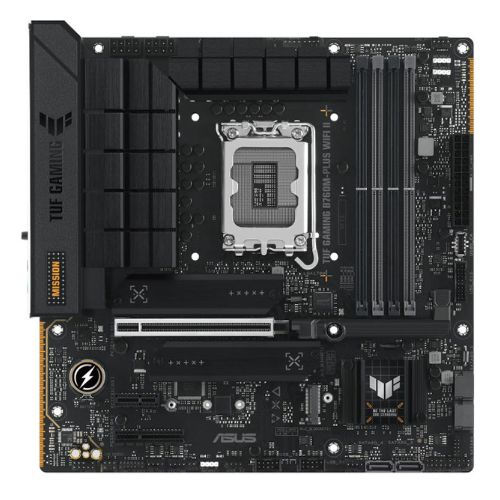

Asus TUF GAMING B760M-PLUS WIFI II Intel B760 1700 Micro ATX

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: Intel 1700
• Chipset: Intel B760
• DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: DDR5 (Dual Channel)
  Supports Intel Extreme Memory Profile (XMP)
  OptiMem II
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 7800+(OC)
• Maximum Memory: 192GB
• Graphics: Integrated Graphics*
  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 1 x PCIe 5.0 x16
  1 x PCIe 4.0 x4 slot
  1 x PCIe 3.0 x1 slot
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
  1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
  1 x M.2 (2242/2260/2280) - PCIe 4.0 x2
• RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
• Wireless: Wi-Fi 6E
  2x2 Wi-Fi 6E (802.11ax)
  Supports 2.4/5/6GHz frequency band
  Bluetooth v5.3
• LAN: 2.5GB LAN
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: Rear:
  1 x USB 20Gbps Type-C
  1 x USB 10Gbps Type-A
  2 x USB 5Gbps Type-A
  4 x USB 2.0

  Front:
  1 x USB 10Gbps Type-C
  2 x USB 5Gbps
  5 x USB 2.0
• Back Panel I/O Ports: 1 x USB 20Gbps Type-C
  1 x USB 10Gbps Type-A
  2 x USB 5Gbps Type-A
  4 x USB 2.0
  1 x DisplayPort
  1 x HDMI
  1 x Wi-Fi Module
  1 x Realtek 2.5Gb Ethernet
  5 x Audio jacks
  1 x Optical S/PDIF out
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  1 x 4-pin AIO Pump
  3 x 4-pin Chassis Fan
  1 x 24-pin Main
  2 x 8-pin +12V
  3 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 10Gbps Type-C
  1 x USB 5Gbps
  3 x USB 2.0
  3 x Addressable Gen2
• .: 1 x Clear CMOS
  1 x Front Panel Audio
  1 x 20-3 pin System Panel
  1 x Thunderbolt (USB4)
• Accessories: 2 x SATA 6Gb/s cables
  1 x ASUS Q-Antenna
  1 x M.2 Rubber Package
  1 x TUF Gaming sticker
  2 x Screw packages for M.2 SSD
  1 x TUF Certification card
  1 x User guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.6200 kg
• Warranty: 3 Years
• M.2 Slot(s): Yes (M.2)
• No. LAN Ports: 1 x LAN
• Max LAN Speed: 2.5GB LAN
• Wi-Fi: Yes (Wi-Fi)
