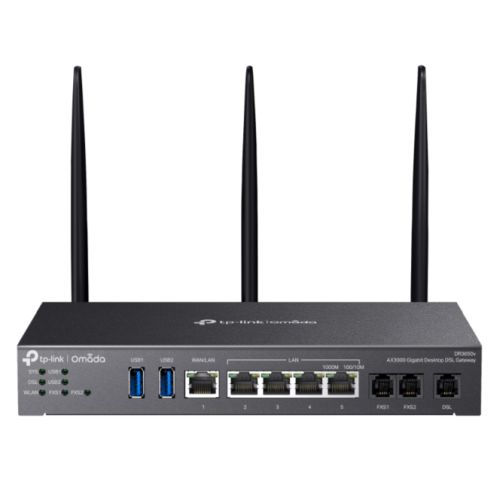

TP-LINK (DR3650v) Omada AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway Dual

Description

Specification

• Type: VDSL2/ADSL2 Router
• Connectivity: Wireless
• Wi-Fi Rating: AX3000
• Max Single Band Wi-Fi Rate: 2402 Mbps
• Max Wired Transfer Rate: 10/100/1000 Mbps
• Bands: Dual Band
• Signal Rate: 5 GHz: 2402 Mbps
  2.4 GHz: 574 Mbps
• Interface(s): "3 x RJ11 Ports (2 x FXS, 1 x DSL)
  5 x RJ45 Gigabit Ports (1 x WAN/LAN, 4 × LAN)
  2 x USB 3.0"
• Frequency: 2.4 GHz & 5 GHz
• Button(s): Reset Button
• Power Supply: "12VDC / 3.3A Power Adapter
  Max Power Consumption: EU: 16.8W (with USB 3.0 connected), 11.8W (without USB 3.0 connected)"
• Antenna(s): 2.4 GHz: 2x 3 dBi dual-band detachable antennas
  5 GHz: 3x 4.5 dBi dual-band detachable antennas
• Dimensions: (WxDxH) 226 x 131 x 35 mm) (Antenna dimensions are not
  included)
• Wireless Features: Seamless Roaming
  Mesh (with EAP that supports Mesh)
  OFDMA
  Beamforming
  MU-MIMO
• Security: "WiFi Encryption:
  WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise

  Filtering:
  Web Group Filtering
  URL Filtering
  Web Security

  ARP Inspection:
  Sending GARP Packets
  ARP Scanning
  IP-MAC Binding

  Attack Defense:
  TCP/UDP/ICMP Flood Defense
  Block TCP Scan (Stealth FIN/Xmas/Null)
  Block Ping from WAN

  Access Control:
  Source/Destination IP Based Access Control"
• DHCP: DHCP Server
  DHCPv6 PD Server (only in Standalone Mode)
  DHCP Options Customization
  DHCP Address Reservation
  Multi-IP Interfaces
  Multi-Net DHCP
• Port/NAT Forwarding: "66 Byte Packet forwarding rate:
  1,453,489 pps / 1,453,488 pps

  1,518 Byte Packet forwarding rate:
  81,274 pps / 91,275 pps"
• VPN Support: "SSL VPN:
  50 Tunnels

  IPsec VPN:
  100 IPSec VPN Tunnels
  LAN-to-LAN, Client-to-LAN
  Main, Aggressive Negotiation Mode
  DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
  IPsec Failover
  IKE v1/v2
  MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
  NAT Traversal (NAT-T)
  Dead Peer Detection (DPD)
  Perfect Forward Secrecy (PFS)

  "
• .: PPTP VPN:
  PPTP VPN Server
  PPTP VPN Client (10)
  50 Tunnels
  PPTP with MPPE Encryption

  L2TP VPN:
  L2TP VPN Server
  L2TP VPN Client (10)
  50 Tunnels
  L2TP over IPSec

  OpenVPN:
  OpenVPN Server
  OpenVPN Client (5)
  55 OpenVPN Tunnels
  ""Certificate + Account"" Mode
  Full Mode

  WireGuard VPN:
  20 Tunnels
• Management: Omada App
  Centralized Management
  Cloud Access
  Zero-Touch Provisioning

  Maintenance:
  Web Management Interface
  Remote Management
  Export & Import Configuration
  SNMP v1/v2c/v3
  Diagnostics (Ping & Traceroute)
  NTP Synchronize
  Port Mirroring
  CLI (only in Standalone Mode)
  Syslog Support
  TR-069 (data models of TR-098 and TR181 are supported)


• .: Management Features:
  Automatic Device Discovery
  Intelligent Network Monitoring
  Abnormal Event Warnings
  Unified Configuration
  Reboot Schedule
  Captive Portal Configuration
• Dynamic DNS: "Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)"
• USB Application: Supports 4G/3G dongles
• Additional Features: Flash: 256 MB NAND
  DRAM: 512 MB DDR4
  Desktop/Wall-mounting
  Guest Network
• Environment: Operating Temperature: 0C°~40°C (32°F ~104°F)
  Storage Temperature: -40°C to 70°C (-40 °F to 158 °F)
  Operating Humidity: 10% to 90% non-condensing
  Storage Humidity: 5% to 90% non-condensing
• Package Contents: DR3650v
  Power Adapter
  Ethernet Cable
  Phone Cable
  Quick Installation Guide
• Package Type: Retail
• Package Weight: 1.7900 kg
• Warranty: Limited Lifetime
• Wireless Standard: Wi-Fi 6/6E (802.11ax)
• Mesh Wi-Fi Support: Yes (Mesh Wi-Fi)1
