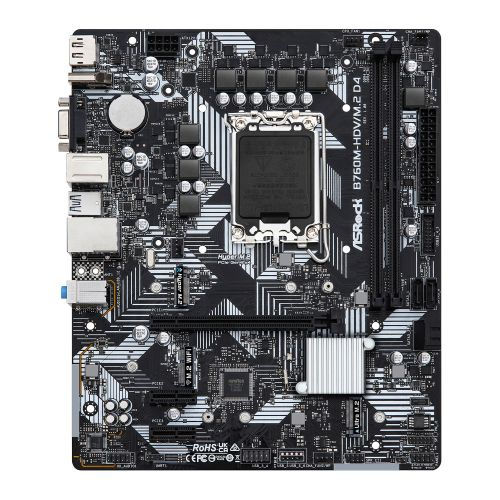

Asrock B760M-HDV/M.2 D4 Intel B760 1700 Micro ATX 2 DDR4 VGA

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: Intel 1700
• Chipset: Intel B760
• DDR Type: DDR4
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 2 x DIMM
• RAM Speeds: Up to 5333+(OC)
• Maximum Memory: 64GB
• Graphics: Integrated Graphics*

  *Graphics specifications may vary between CPU types
• Graphics Ports: 1 x VGA
  1 x HDMI
  1 x DisplayPort
• PCI/PCI Express: 1 x PCIe 4.0 x16 (supports x16 mode)
  2 x PCIe 3.0 x1
• Storage: 4 x SATA III
  1 x M.2 (2260/2280) - PCIe
  1 x M.2 (2260/2280) - SATA & PCIe
• RAID: "Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices"
• Wireless: -
• LAN: GB LAN
• Audio: 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
• USB Ports Supported: "1 x USB 3.2 Gen1 Type-C (at back)
  5 x USB 3.2 Gen1 Type-A (3 at back, 2 at mid-board)
  5 x USB 2.0 (2 at back, 3 at mid-board)"
• Back Panel I/O Ports: 2 x Antenna Mounting Points
  1 x PS/2 Mouse/Keyboard
  1 x D-Sub
  1 x HDMI
  1 x DisplayPort 1.4
  1 x USB 3.2 Gen1 Type-C
  3 x USB 3.2 Gen1 Type-A
  2 x USB 2.0
  1 x RJ-45 LAN
  HD Audio Jacks
• Internal I/O Connectors: 1 x SPI TPM
  1 x Chassis Intrusion and Speaker
  1 x CPU Fan
  1 x CPU/Water Pump Fan
  2 x Chassis/Water Pump Fan
  1 x 24 pin ATX
  1 x 8 pin 12V
  1 x Front Panel Audio
  2 x USB 2.0
  1 x USB 3.2 Gen1
• Accessories: 1 x User Manual
  1 x I/O Shield
  2 x SATA Data Cables
  3 x Screws for M.2 Sockets
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.9000 kg
• Warranty: 3 Year Replacement Warranty
• M.2 Slot(s): Yes (M.2)
• No. LAN Ports: 1 x LAN
• Max LAN Speed: GB LAN
